Filter Serat Limbah Bobbin – S Series

Untuk Kolam Renang Perumahan & Semi-Komersial

PILIHAN LEBAR UNTUK UKURAN POOL YANG BERBEDA

Filter Seri V dan S diproduksi oleh fiberglass dan resin tahan lama dan tidak korosif, dengan teknologi otomatis gulungan bobbin, komposit tahan UV, memungkinkan filter bekerja dan tahan terhadap kondisi cuaca ekstrem, tanpa korosi dan masa kerja yang lama.

1 2 3 4

FITUR PRODUK

Bahan Tangki: Fiberglass Reinforced Bobbin-wound
Tekanan operasi maks. 36 psi / 25 bar
Suhu maks 43° C (109° F)
Klep multiport gaya sekrup 6 arah (2" MPV06, 2.5”MPV13)

Sistem Lateral
Pengukur tekanan
Standar universal untuk koneksi serikat
Kit perpipaan

TEKNIKAL DATA

BROSUR

V & S Filter Brochure (English) Double Page Version

V & S Filter Brochure (English) Single Page Version

MANUAL

SUKU CADANG

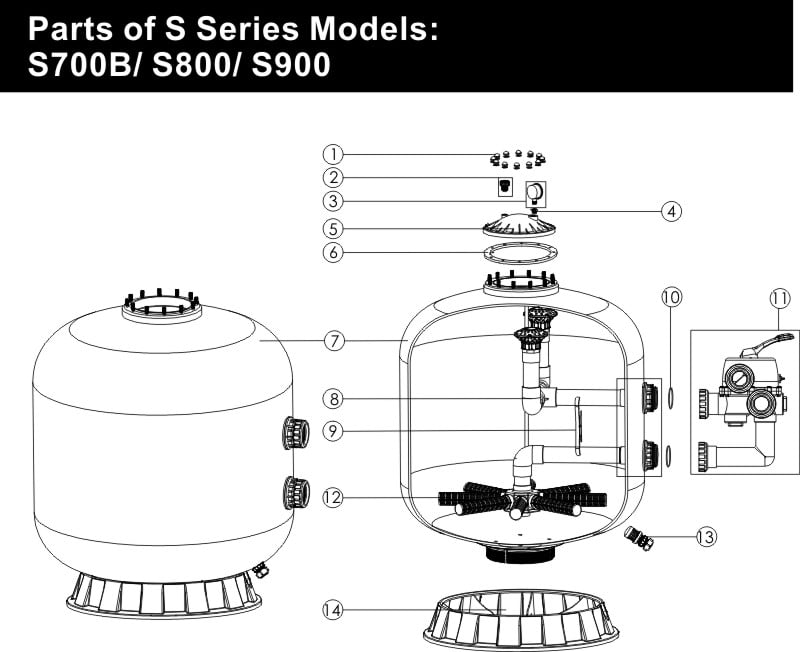

Key No.	Part No.	Description	Piece(s) Required
2	89010701	Air Release Valve with Oring	1
3	06011032	Stainless Steel Oil Pressure Gauge (40psi)	1
4	01172005	Lid (Grey Colour)	1
5	02011126	Filter Neck Gasket	1
6	89011202	S700B Filter Tank	1
6	89011208	Filter Tank with Base for S800	1
6	89011209	Filter Tank with Base for S900	1
7	89011203	The Inner Tank System for S700 (B)	1
7	89011210	The Inner Tank System for S800	1
7	E011106	The Inner Tank System for S900	1
8	01111090	2.0″ Tank System Support	1
10	88280813W	6 Way 2″ Valve with Piping Kit, 2″ union set x 3 and pressure gauge (White)	1
12	89010107	Water Drain Set	1
13	01111062	21-28inch Filter Base	1
13	4104020763	32-40 inch Filter Base	1
9	02011127	O-Ring for Inlet & Outlet	2
11	01172010	Laterals (185mm)	8
11	01172011	Laterals (233mm)	8
1	89010601	Nut with washer	12

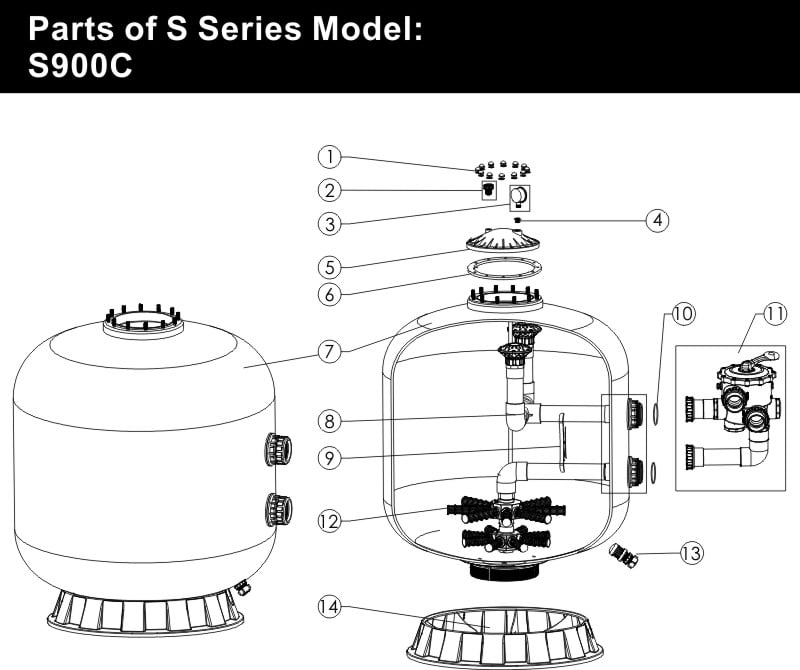

Key No.	Part No.	Description	Piece(s) Required
1	89010601	Nut with washer	12
2	89010701	Air Release Valve with Oring	1
3	06011032	Stainless Steel Oil Pressure Gauge (40psi)	1
4	01172005	Lid (Grey Colour)	1
5	02011126	Filter Neck Gasket	1
6	E011108	S900C Filter Tank With Base	1
7	E011107	The Inner Tank System for S900C	1
8	01110030	2.5″ Tank System Support plate	2
9	01110029	O-Ring for Inlet & Outlet	2
10	88280815W	6 Way 2.5″ Side Mount Valve (Valve Only) (White)	1
11	01172007	Laterals (115mm)	8
11	01172011	Laterals (233mm)	8
12	89010107	Water Drain Set	1
13	4104020763	32-40inch Filter Base	1

Key No.	Part No.	Description	Piece(s) Required
13	88280813W	6 Way 2″ Valve with Piping Kit, 2″ union set x 3 and pressure gauge (White)	1
12	02011127	O-Ring for Inlet & Outlet	2
11	06011029	Stainless Steel Oil Pressure Gauge (40psi)	1
10	89010107	Water Drain Set	1
9	4104020763	32-40 inch Filter Base	1
9	01112039	Base for V1200	1
8	E010307	Laterals (129mm & 185mm) for S1000	8
8	E010308	Laterals (129mm & 233mm) for S1200	8
7	4110000990	2.0″ Tank System Support plate	2
6	89011303	The Inner Tank System for 1000	1
6	89011304	The Inner Tank System for S1200	1
5	89011301	S1000 Filter Tank With Base	1
5	89011302	S1200 Filter Tank With Base	1
4	111292548	Rubber Ring for Lid	1
3	01161006	Manhole	1
2	4100076786	Bow-Shaped Bar (SMC)	1
1	01111100	Star-Shaped Nut	1

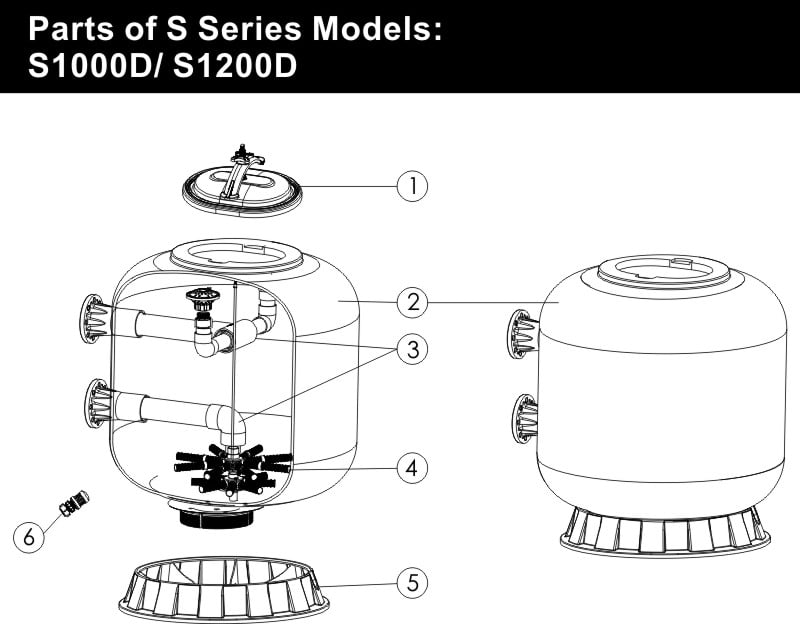

Key No.	Part No.	Description	Piece(s) Required
1	01111100	Star-Shaped Nut	1
2	4100076786	Bow-Shaped Bar (SMC)	1
3	111292548	O-Ring for Manhole	1
4	E012053	Lid	1
5	E011312	S1000D Filter Tank With Base	1
5	E011313	S1200D Filter Tank With Base	1
6	E011314	The Inner Tank System for S1000D	1
6	E011315	The Inner Tank System for S1200D	1
7	E010307	Laterals(129mm & 185mm) for S1000C/S1000D	8
7	E010308	Laterals(129mm & 233mm) for S1200C/S1200D	8
7	01172008	Laterals (126mm)	8
8	4104020763	32-40inch Filter Base	1
8	01112039	Base for V1200	1
9	89010107	Water Drain Set	1

Filter Serat Limbah Bobbin – S Series

PILIHAN LEBAR UNTUK UKURAN POOL YANG BERBEDA

FITUR PRODUK

Bahan Tangki: Fiberglass Reinforced Bobbin-wound

Tekanan operasi maks. 36 psi / 25 bar

Suhu maks 43° C (109° F)

Klep multiport gaya sekrup 6 arah (2" MPV06, 2.5”MPV13)

Sistem Lateral

Pengukur tekanan

Standar universal untuk koneksi serikat

Kit perpipaan

TEKNIKAL DATA
